flowchart LR
R[Growth rate r] --> G[Growth flow rP]
P[Population P] --> G
G --> Pflowchart LR R[Growth rate r] --> G[Growth flow rP] P[Population P] --> G G --> P
Learning goals
After working through this module, you should be able to:
- distinguish an amount, a rate of change, and a change over a time step;
- translate a differential equation into a difference equation;
- identify stocks, flows, parameters, initial conditions, and units;
- implement unconstrained growth or decay in R;
- compare an Euler simulation with an analytical solution; and
- explain the effects of time-step size and model assumptions.
Begin with a prediction
A population begins with 100 individuals and grows at a continuous rate of 10% per hour.
- After 8 hours, will it be less than 180, between 180 and 240, or greater than 240?
- Will it gain the same number of individuals every hour?
- What shape should its graph have?
Keep your predictions. We will test them after building the model.
From words to a model
Let \(P(t)\) be the population at time \(t\) and let \(r\) be its per-capita growth rate. Our central assumption is:
The population’s rate of change is proportional to the population currently present.
Mathematically,
\[ \frac{dP}{dt}=rP. \]
| Quantity | Meaning | Example units |
|---|---|---|
| \(P\) | current population | individuals |
| \(P_0\) | initial population | individuals |
| \(r\) | proportional growth rate | per hour |
| \(t\) | time | hours |
| \(\Delta t\) | length of one simulation step | hours |
The population is a stock: an amount accumulated over time. Growth is a flow into that stock. Because the flow \(rP\) depends on the stock itself, this is a positive feedback loop.
The Euler update
Over a short interval, approximate the derivative with
\[ \frac{P_{new}-P_{old}}{\Delta t}\approx rP_{old}. \]
Solving for the new population gives Euler’s update rule:
\[ P_{new}=P_{old}+rP_{old}\Delta t. \]
This has a form we will reuse throughout the course:
\[ \boxed{\text{new amount}=\text{old amount}+\text{rate of change}\times\text{time passed}} \]
Check one step by hand
With \(P_{old}=100\), \(r=0.10\) per hour, and \(\Delta t=1\) hour,
\[ P_{new}=100+(0.10)(100)(1)=110. \]
The next increase will be larger because the growth flow is calculated from a larger population.
Build the simulation in R
1. Define time, the parameter, and the initial condition
start_time <- 0 # hours
end_time <- 8 # hours
delta_t <- 1 # hours per step
growth_rate <- 0.10 # per hour
initial_population <- 100 # individualsKeeping units in the comments makes it easier to catch mistakes.
2. Create the simulated times
time <- seq(from = start_time, to = end_time, by = delta_t)
time[1] 0 1 2 3 4 5 6 7 8Time begins at 0, but R begins counting vector positions at 1. Therefore time[1] contains 0.
3. Create and initialize the stock
population <- numeric(length(time))
population[1] <- initial_populationThe vector will store the population’s entire trajectory. Initially, we know only its first value.
4. Advance through time
for (i in 2:length(time)) {
population_old <- population[i - 1]
growth <- growth_rate * population_old
change <- growth * delta_t
population[i] <- population_old + change
}Each iteration reads the previous stock, calculates its flow, converts the flow into a change, and stores the next stock value.
5. Organize and inspect the results
results <- data.frame(time, population)
results time population
1 0 100.0000
2 1 110.0000
3 2 121.0000
4 3 133.1000
5 4 146.4100
6 5 161.0510
7 6 177.1561
8 7 194.8717
9 8 214.3589Before trusting a graph, verify that the first two rows agree with the hand calculation: 100 at time 0 and 110 at time 1.

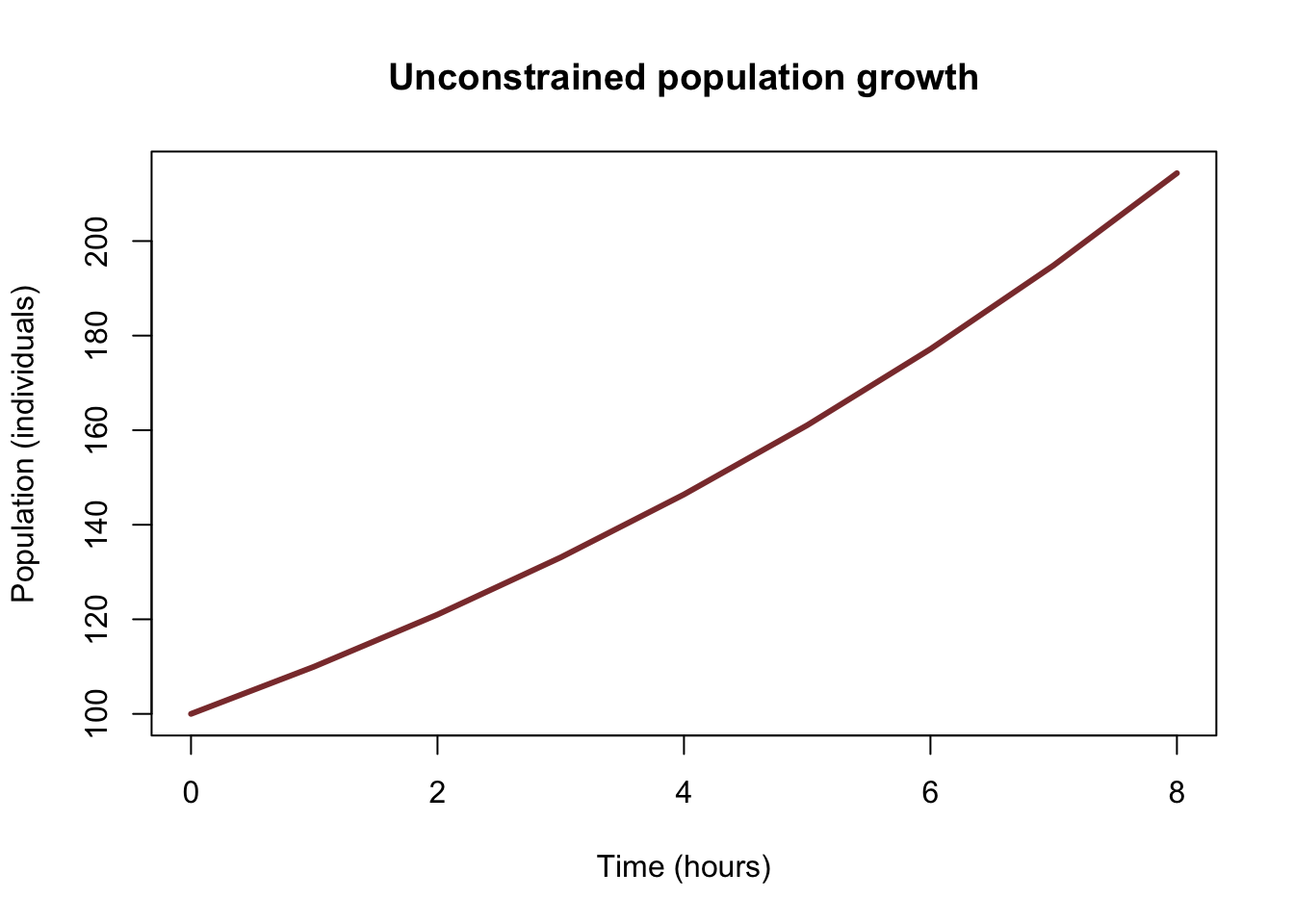

6. Graph the trajectory
plot(
results$time,
results$population,
type = "l",
lwd = 3,
col = "#8b3a3a",
xlab = "Time (hours)",
ylab = "Population (individuals)",
main = "Unconstrained population growth"
)
Return to your opening predictions. The curve bends upward because every increase creates a larger population—and therefore an even larger future increase.
Compare with the analytical solution
Calculus gives the exact solution to this differential equation:
\[ P(t)=P_0e^{rt}. \]
Calculate exact values at the same times and measure the numerical error:
results$exact <- initial_population * exp(growth_rate * results$time)
results$error <- results$population - results$exact
results time population exact error
1 0 100.0000 100.0000 0.0000000
2 1 110.0000 110.5171 -0.5170918
3 2 121.0000 122.1403 -1.1402758
4 3 133.1000 134.9859 -1.8858808
5 4 146.4100 149.1825 -2.7724698
6 5 161.0510 164.8721 -3.8211271
7 6 177.1561 182.2119 -5.0557800
8 7 194.8717 201.3753 -6.5035607

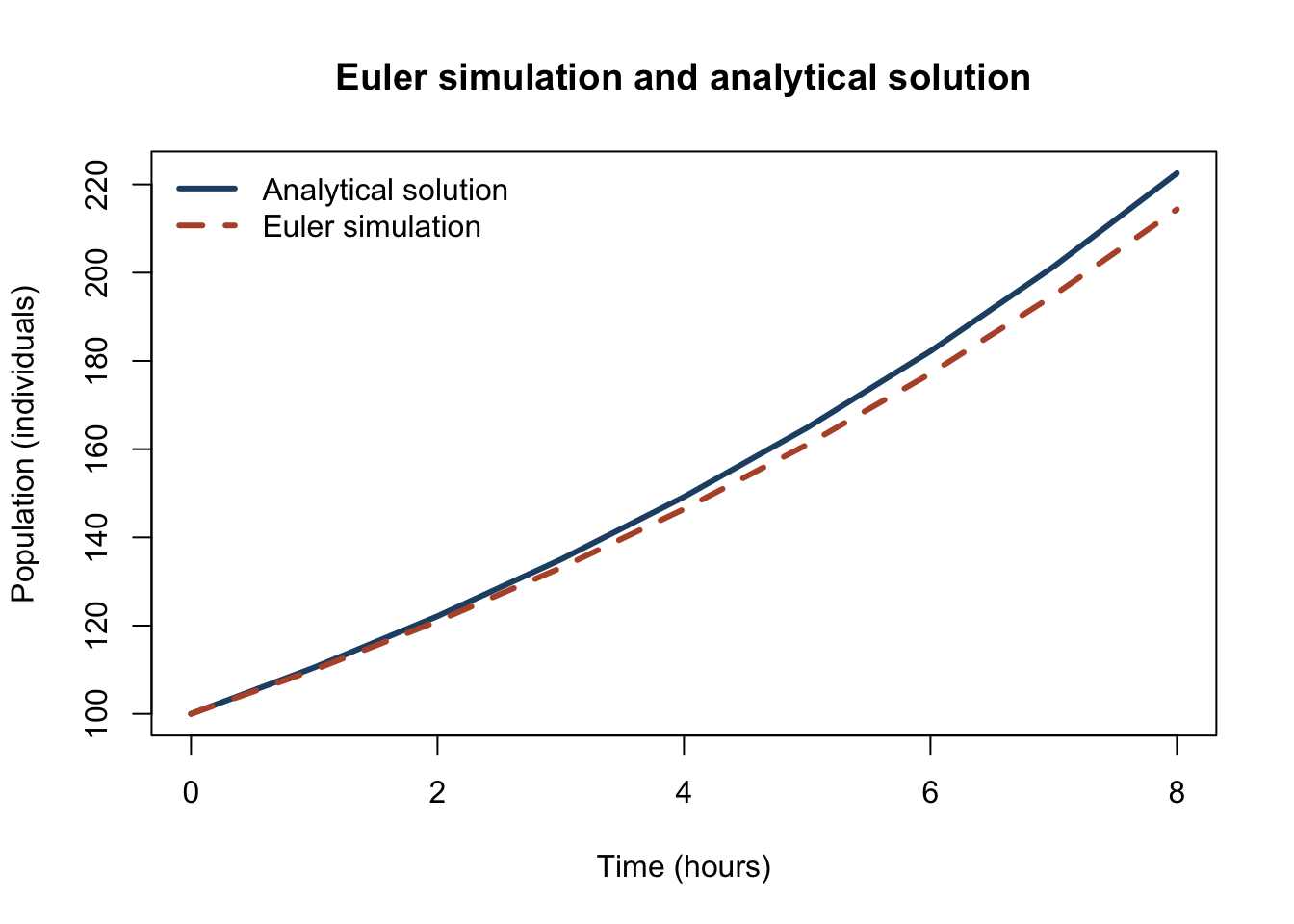

9 8 214.3589 222.5541 -8.1952118plot(
results$time,
results$exact,
type = "l",
lwd = 3,
col = "#214f73",
xlab = "Time (hours)",
ylab = "Population (individuals)",
main = "Euler simulation and analytical solution"
)
lines(results$time, results$population, lwd = 3, lty = 2, col = "#b65335")
legend(
"topleft",
legend = c("Analytical solution", "Euler simulation"),
col = c("#214f73", "#b65335"),
lty = c(1, 2),
lwd = 3,
bty = "n"
)
The code can correctly implement Euler’s method without producing the exact continuous solution. The difference is numerical error caused by replacing continuous change with discrete steps.
Refine the time step
Run the same model again with a smaller time step. We will use new object names so that we can compare the two simulations.
small_delta_t <- 0.25
small_time <- seq(from = start_time, to = end_time, by = small_delta_t)
small_population <- numeric(length(small_time))
small_population[1] <- initial_population
for (i in 2:length(small_time)) {
population_old <- small_population[i - 1]
growth <- growth_rate * population_old
change <- growth * small_delta_t
small_population[i] <- population_old + change
}
small_results <- data.frame(
time = small_time,
population = small_population
)
small_results$exact <- initial_population *
exp(growth_rate * small_results$time)
small_results$error <- small_results$population - small_results$exactCompare the final values from the original one-hour simulation and the new quarter-hour simulation:
exact_at_end <- initial_population * exp(growth_rate * end_time)
data.frame(
delta_t = c(delta_t, small_delta_t),
number_of_steps = c(length(time) - 1, length(small_time) - 1),
final_population = c(
tail(results$population, 1),
tail(small_results$population, 1)
),
absolute_error = c(
abs(tail(results$population, 1) - exact_at_end),
abs(tail(small_results$population, 1) - exact_at_end)
)
) delta_t number_of_steps final_population absolute_error
1 1.00 8 214.3589 8.195212
2 0.25 32 220.3757 2.178399A smaller time step generally reduces Euler error because the rate is recalculated more often. It also requires more computation. Accuracy is therefore connected to both the numerical method and the time-step choice.
Unconstrained decay
The same equation describes decay when \(r<0\). No new algorithm is needed; changing the sign changes the system’s behavior.
decay_start <- 100
decay_rate <- -0.10
decay_end_time <- 20
decay_delta_t <- 0.5
decay_time <- seq(from = 0, to = decay_end_time, by = decay_delta_t)
decay_amount <- numeric(length(decay_time))
decay_amount[1] <- decay_start
for (i in 2:length(decay_time)) {
amount_old <- decay_amount[i - 1]
decay_flow <- decay_rate * amount_old
change <- decay_flow * decay_delta_t
decay_amount[i] <- amount_old + change
}
decay_results <- data.frame(
time = decay_time,
amount = decay_amount
)
decay_results$exact <- decay_start *

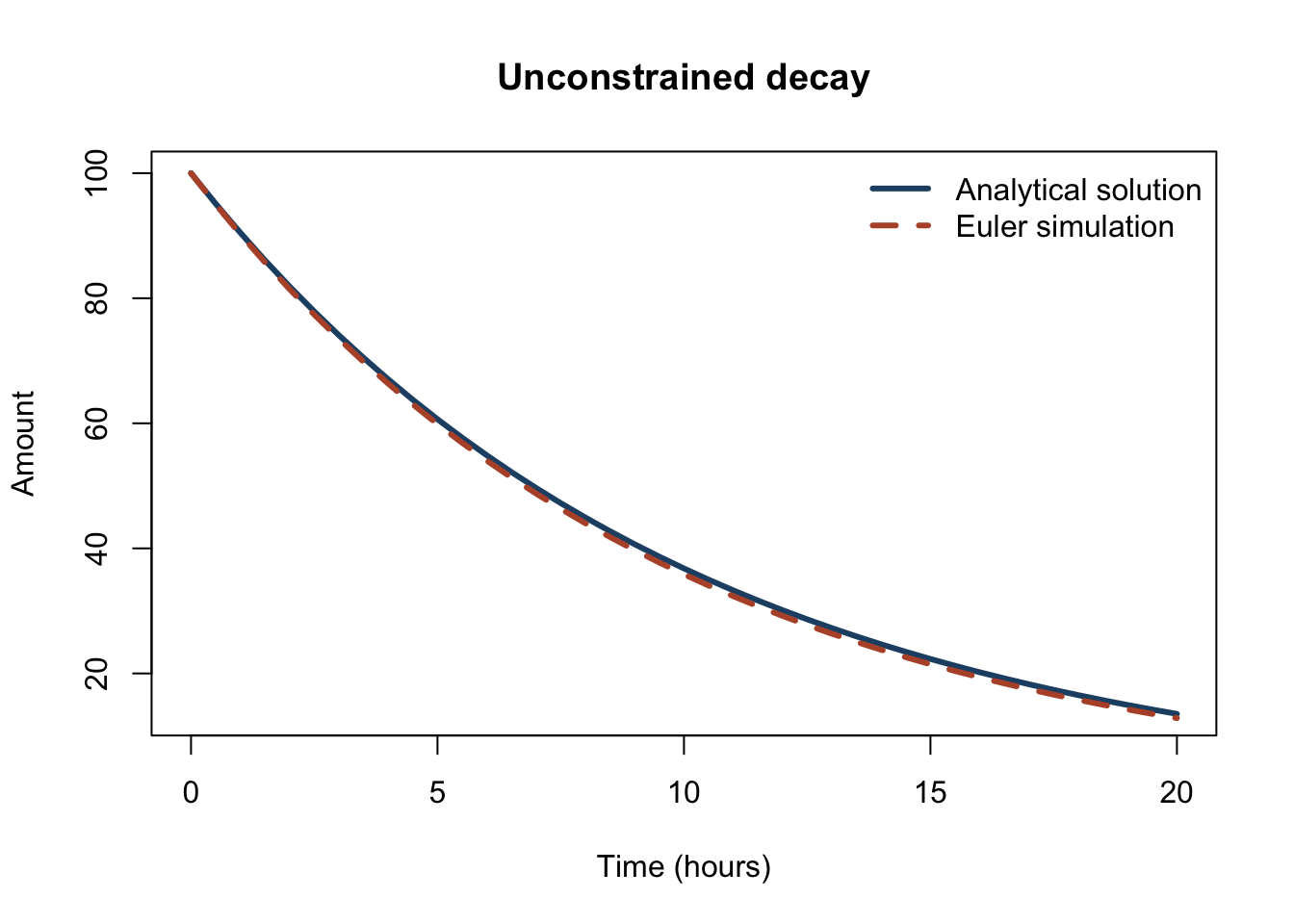

exp(decay_rate * decay_results$time)plot(
decay_results$time,
decay_results$exact,
type = "l",
lwd = 3,
col = "#214f73",
xlab = "Time (hours)",
ylab = "Amount",
main = "Unconstrained decay"
)
lines(
decay_results$time,
decay_results$amount,
lwd = 3,
lty = 2,
col = "#b65335"
)
legend(
"topright",
legend = c("Analytical solution", "Euler simulation"),
col = c("#214f73", "#b65335"),
lty = c(1, 2),
lwd = 3,
bty = "n"
)
The exact decay curve approaches zero without reaching it. Euler’s method can produce an impossible negative amount if the time step is too large relative to the decay rate.
Use the model to answer questions
A graph helps us understand the overall behavior, but a model should also answer specific questions. Many useful questions ask when a stock first crosses a threshold.
When will the population double?
Suppose the population begins at 100, grows at 10% per hour, and we simulate with \(\Delta t=0.25\) hour. We already stored that simulation in small_results.
doubling_positions <- which(small_results$population >= 200)
first_double <- doubling_positions[1]
small_results[c(first_double - 1, first_double), ] time population exact error
29 7.00 199.6495 201.3753 -1.725769
30 7.25 204.6407 206.4731 -1.832371The first displayed row is still below 200; the next row is the first simulated time at or above 200. Checking both rows confirms that we found the first crossing rather than merely a time after the population doubled.
The analytical solution gives an exact doubling time:
exact_doubling_time <- log(2) / 0.10
exact_doubling_time[1] 6.931472Why is the simulated answer a multiple of 0.25? What happens to the estimated crossing time if delta_t becomes smaller?
When will a decaying amount fall below 25?
Now begin at 100 and decay at 10% per hour. This could represent a pollutant, a medication, or a radioactive substance over a time interval where a constant proportional rate is reasonable. Use the decay simulation we already created.
below_25_positions <- which(decay_results$amount <= 25)
first_below_25 <- below_25_positions[1]
decay_results[c(first_below_25 - 1, first_below_25), ] time amount exact
28 13.5 25.03441 25.92403
29 14.0 23.78269 24.65970Compare that result with the exact crossing time:
exact_time_below_25 <- log(25 / 100) / -0.10
exact_time_below_25[1] 13.86294Ask another question
Use the code to investigate one of these:
- When will a population starting at 500 first exceed 1,000 if it grows at 4% per day?
- When will an amount starting at 80 fall below 10 if it decays at 6% per hour?
- Which matters more over 10 hours: doubling the initial population or doubling the growth rate?
Before running the model, predict the answer or direction of the effect. Then report the parameter values, threshold-crossing rows, and an interpretation with units.
Assumptions and limits
This model assumes:
- the proportional rate remains constant;
- resources never become scarce;
- the population is well mixed;
- individuals are interchangeable;
- continuous rates adequately represent births and deaths; and
- outside influences are negligible.
Those assumptions may be useful over a limited interval. A numerically accurate answer can still be a poor prediction if the model’s assumptions do not fit reality.
Further experiments
For each experiment, make a prediction, run the model, and explain what happened.
- Double the initial population while keeping the growth rate fixed.
- Double the growth rate while keeping the initial population fixed.
- Find a time step that keeps the absolute error at 8 hours below 1 individual.
- Find a decay time step that produces a negative amount. Explain why.
- Name one real process that might follow unconstrained growth or decay briefly, but not forever.
What to remember
- A differential equation describes an instantaneous rate of change.
- A difference equation gives an update a computer can execute.
- Euler’s pattern is
new = old + rate * time passed. - A stock’s trajectory can be stored in a vector.
- Smaller steps usually reduce Euler error but require more calculations.
- Verifying an implementation is different from validating a model.
Next: Project 1
In Saving for a Car, the same update pattern controls three quantities: savings, new-car price, and trade-in value.
